How to update toolbar button color

saikat.guchhait · May 30, 2022, 12:17pm

We are using Dynamic PDFnet XCFframework from above DMG mentioned URL: GitHub - saikat90/PDFSwiftSample

Steps to run the project:

Tools XCFramework are already there in the Github URL
PDFNet XCFramework we need to download from the above DMG mentioned URL

Result:
For highlighter Markup, it is not working for us

Let us know
What are we doing wrong?

Yifan_Zhang · May 31, 2022, 8:03pm

Hi Saikat,

Thank you for your feedback. Can you please try the attached code to see if it works? PTAnnotEditTool and PTToolGroupToolbar are overridden.

Thank you,
Yifan

ViewController.swift (3.3 KB)

saikat.guchhait · June 1, 2022, 5:32am

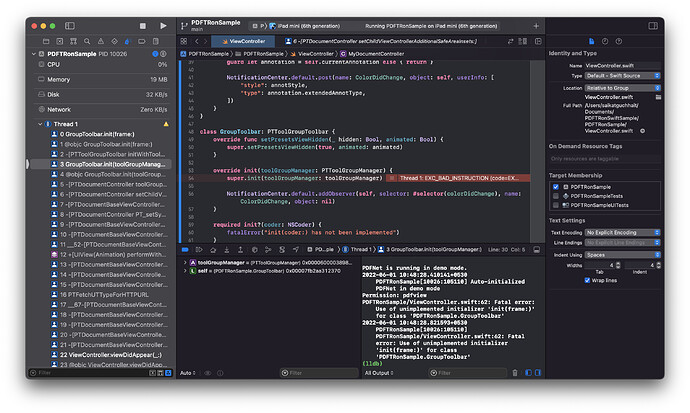

After adding this view controller in the above project facing a crash on GroupToolbar class initialization
PFA

ViewController.swift (3.5 KB)

Can you please help me out with this?

Thanks
Saikat

Yifan_Zhang · June 1, 2022, 4:33pm

Hi Saikat,

You could try adding this in GroupToolbar class:

override init(frame: CGRect) {
    super.init(frame: frame)
}

Please let us know how this works for you.

Thank you,
Yifan

saikat.guchhait · June 1, 2022, 4:48pm

Awesome, the Crash got resolved.
It is working for us.
Will play around more on this and let you know.

Thanks Yifan

rankit.agarwal · June 2, 2022, 7:18am

Hi @Yifan_Zhang ,

With this solution, we are facing one issue. If we change the color of the annotation and at that time if another tool is selected its icon is also getting changed. Attaching a video for better understanding.

Steps to reproduce:

Draw any markup. eg. using a highlighter.
Select the Callout markup tool from toolbar.
Select drawn highlighter markup and change the color of that annotation.
Callout markup and highlighter both tool’s icon and color are getting change. It should change only the highlighter tool icon.

This is happening with all tools. Can you please help us with how we can fix that?

Thanks.

Controller file:
ViewController.swift (4.8 KB)

Yifan_Zhang · June 2, 2022, 4:54pm

My apologies. Please try this:

    @objc func colorDidChange(notification: Notification) {
        let userInfo = notification.userInfo!
        let style = userInfo["style"] as! PTAnnotStyle
        let type = userInfo["type"] as! PTExtendedAnnotType

        let presets = PTAnnotationStyleManager.default.stylePresets(forAnnotationType: type)
        var styles = presets.styles
        styles[Int(presets.selectedIndex)] = style
        presets.styles = styles
        PTAnnotationStyleManager.default.setStylePresets(presets, forAnnotationType: type)

        for item in self.items ?? [] {
            if let toolItem = item as? PTToolBarButtonItem {
                if toolItem.toolClass?.annotType == type {
                    toolItem.setImageStyle(style)
                }
            }
        }
    }

Thank you,
Yifan

rankit.agarwal · June 3, 2022, 5:55am

Hi @ @Yifan_Zhang , Thanks for the solution.

We have tried it and it is working fine except for these tools.

Can you tell us how we can implement the same for these also?

Thanks

Yifan_Zhang · June 3, 2022, 4:15pm

Hi Rankit,

These annotation types are managed by PTPolyLineEditTool, you could implement the method annotStyleViewController(_ : didChange: ) in PTPolyLineEditTool's subclass, the same way as in MyAnnotEditTool.

Please let us know if this helps.

Best,
Yifan

rankit.agarwal · June 9, 2022, 12:34pm

It worked. Thanks @Yifan_Zhang

rankit.agarwal · June 13, 2022, 9:34am

Hi @Yifan_Zhang ,

We are having one crash, Here I am attaching sample code and some screenshots.

Steps to reproduce:

Add PDFNet and Tools xcframework in the framework folder.
Run the project and click on PDFTron button which will navigate to DocController.
Add any markup and change its color from the style option.
Go back from the navigation bar button and again press PDFTron button
App will crash

If we comment out this code in GroupToolbar class, it is working fine.

Crash :

Can you please tell us How can we fix it?

Code Attachment:
SamplePDFTronApp.zip (78.9 KB)

Yifan_Zhang · June 13, 2022, 5:30pm

Hi Rankit,

Thank you for reporting the issue.

We are able to reproduce this and are investigating for the root cause.

To avoid the crash for now, please try the attached code. Free text types are not suitable for changing styles in tool manager’s callback.
SamplePDFTronApp.zip (100.3 KB)

Please let us know if you have any other questions.

Best,
Yifan
